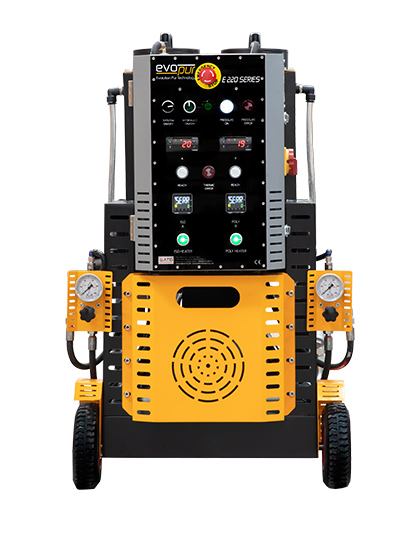

E220 Polyurethane Spray Foam Machine

The smallest member of ATG's double component spray foam machines

Are you ready to review the privileges of ATG's smallest member E 220 spray foam machine?

E-220 spray foam machine is very easy to use and will be on your side wherever you need. It works with single phase electricity instead of 3 phase, so you will be able to use it anywhere you find a power point.

Catalog

Technical

Question

Spray Foam Insulation Guns

Lorem ipsum dolor amet consectetur do tempor incididunt labore et dolore

Explore spray gun

Polyurethane equipment

Spray Foam Insulation Equipment

We are manufacturer and supplier of spray foam systems and spray insulation unit.

Explore all equipment

Best prices & quality

Barrel Transfer Pump

Explore transfer pump

E-220 spray foam machine is ready to be the star of insulation world

Apart from the other spray machines in the market, E-220 doesn't need stick pumps or generator and lower need for pressurised air.

It is the smallest polyurethane spray foam machine that can be carried easily with all kinds of vehicles and low muscle power, easily insulate the areas such as roof, foundation, terrace and inverted ceiling.

Warranty: 2 year

Spare part Possesion: 10 year

Need: Any transfer pumps and generator

Single phase: 110-220 V

Why you should choose?

Why choose this polyurethane machine?

Why should you choose E 220 spray machine?

Doesn't need industrial electricity(3 phase) so you can work with single phase(110=220 V) electricity

Easy carriage

It is the smallest spray machine that you can carry with your vehicle or by your hands.

No need for transfer pump

Spray foam machine without transfer pump that you can work with in every difficult condition.

Polyurethane Spray Foam Machine Manufacturer

Why you should choose?

Can't decide which spray machine to buy?

All technical information of this polyurethane foam machine

(*) Please tell your countries electricity conditions to our sales person.

	Europe-Asia-Africa-Australia	America
Volt	220	110
Max KW	3,5	3,5
Ampere	18	24
Phase	1 Ø Y	1 Ø Δ
HZ	50	60
Generator KW	7,5	9
Maximum Fluid Output (at 25°C ambient temperature)	6 kg	6 kg
Maximum Fluid Pressure (at 25°C ambient temperature)	1,0 mpa 100 bar	1,0 mpa 100 bar
Adjustable Fluid Pressure	10 bar - 100 bar	10 bar - 100 bar
Max Hose (mt)	30	30
Weight	136 kg	136 kg
Preheater KW	2000	2000
Hose Heater	Yok	Yok
Max Fluid Temperature	50°C	50°C
Tank Capacity (Each)	30 lt	30 lt

Voltage Codes
Ø	FAZ
Δ	DELTA
Y	WYE

(*) All measurements has been made while equipments work at full power.

Frequently asked questions with the E220 Polyurethane Spray Foam Machine

Can i make spray polyurea applications with this machine?
This machine is designed to spray polyurethane foam only.
Is this machine manufactered by ATG?
All Evopur branded equipments are made by ATG.
Does this machine need an air kompressor?
E 220 doesnt need transfer pumps so air compressor will be working for spray gun only.
Can this machine make injection?
You can check our M series machines if you need polyurethane foam injection.
