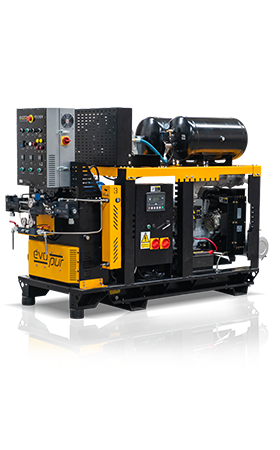

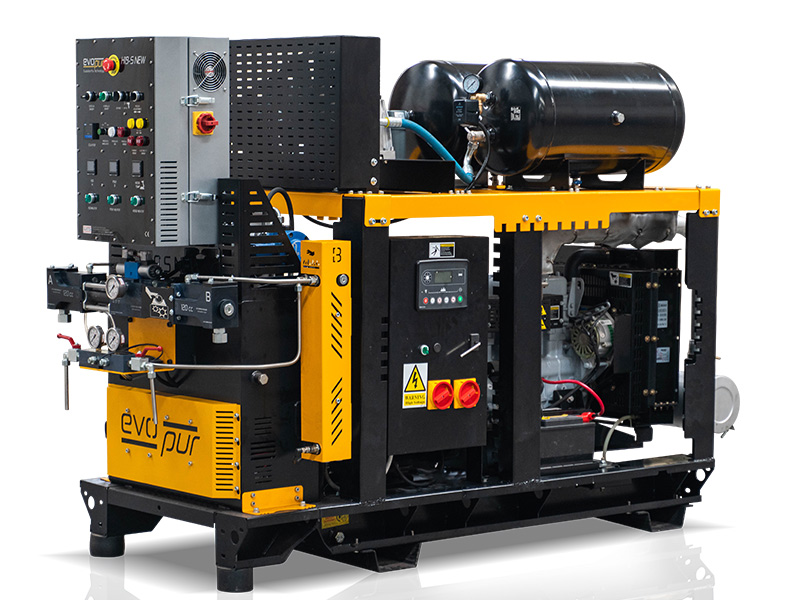

G Series Polyurethane Spray Foam & Polyurea Spray Machine

G Series Polyurethane Foam & Polyurea Insulation Machine is a 5th generation hydraulic spray machine.

The G series polyurethane machine produced by our brand is a 5th generation hydraulic machine. The polyurethane machine, which has an integrated system that includes a generator and compressor, can produce its own electricity and air, so it has a strong side that distinguishes it from its competitors.

It is a high efficiency unrivaled polyurethane machine that can spray up to 12 kg per minute with low energy need thanks to its special pump.

Catalog

Technical

Question

Polyurethane Spray Foam & Polyurea Spray Machine Best Quality

Grow your business together

We provide you all equipment for G series spray foam machine with best price and quality.

Spray Foam Insulation Guns

It is the only and most robust isolation gun made of solid aluminum in the world.

Explore spray gun

Polyurethane equipment

Spray Foam Insulation Equipment

We are manufacturer and supplier of spray foam systems and spray insulation unit.

Explore all equipment

Best prices & quality

Barrel Transfer Pump

Explore transfer pump

G Series pu foam and polyurea spray machine is exactly what you need

It can operate your machine with either mains electricity or a generator. In addition, as long as the mains electricity is used, it can charge its own battery.

G series polyurethane and polyurea machine eliminates all the obstacles you may encounter in terms of equipment and work safety with its pressure brewing system.

Easy maintenance, minimum breakdown, high reliability, maximum performance and in many respects, this spray foam and polyurea machine meet your needs completely.

Warranty: 2 year

Spare part Possesion: 10 year

Compact: Generator, compressor and machine together

Output Flow: 12kg/min

Get to know this wonderful spray foam machine better in just 1 minute.

High power and a+ customer service

Why you should choose?

Why should i choose G Series spray foam and polyurea machine?

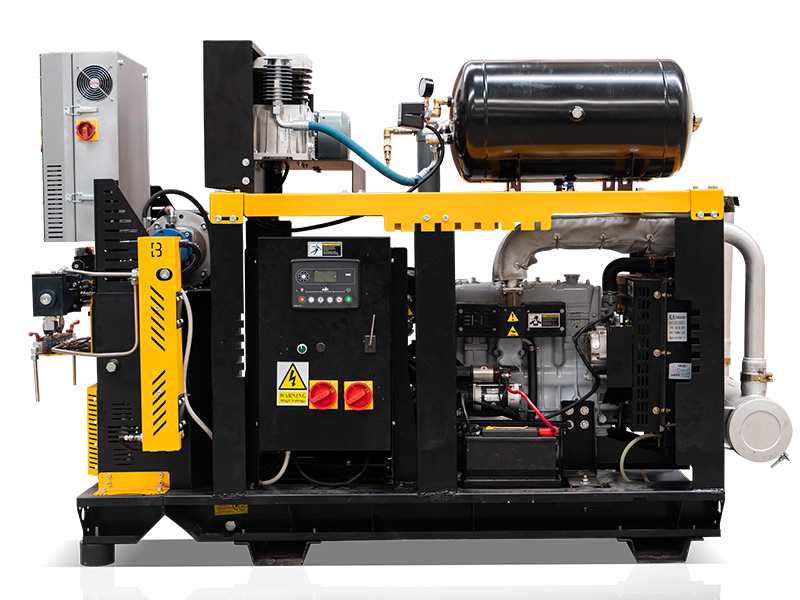

Generator integrated compact system

This unit has an integrated system that includes a generator and compressor, can produce its own electricity and air, so it has a strong side that distinguishes it from its competitors.

Low consumption

With its 35 KVA new generation turbo diesel engine, it consumes 7 liters of fuel per hour.

Tested and approved

It is a mini production facility preferred by professionals who have proven themselves in difficult and large projects such as dam construction.

Why you should choose?

Can't decide which spray machine to buy?

All technical information of this polyurethane foam machine

(*) Please tell your countries electricity conditions to our sales person

	Europe-Asia-Africa-Australia	America
Volt	350-415	220-240
Maks KW	19.5 (19.500 W)	19.5 (19.500 W)
Ampere	38	45
Phase	3 Ø Y	3 Ø Δ
Hz	50	60
Generator(KW)	35	35
Maximum Fluid Output (25°C ambient temp)	12 kg/dk	12 kg/dk
Max. Fluid Pressure (25°C ambient temp)	1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi	1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi
Adjustable Fluid Pressure	30 bar - 200 bar	30 bar - 200 bar
Oil Pressure	72 bar	72 bar
Preheater (KW)	5000 W herbiri	5000 W herbiri
Hose Heating (KW)	4 kw	4 kw
Fluid Output (ISO)	16 - 1.5 metric	1/2 Unf
Fluid Output (POLY)	18 - 1.5 metric	9/16 Unf
Fluid Input (ISO)	(G) 3/4 (2.0 MPa, 20 bar) max.	(Npt) 3/4 (2.0 MPa, 20 bar) max.
Fluid Input (POLY)	(G) 3/4 (2.0 MPa, 20 bar) max.	(Npt) 3/4 (2.0 MPa, 20 bar) max.
Max. Fluid Temperature	90°C / 194°F	90°C / 194°F
Max. Hose Length (Mt.)	60 Mt.	60 Mt.
Hydraulic Oil Capacity(Lt.)	34	34
Net Weight	1.050 kg (1050.000 gr.)	1.050 kg (1050.000 gr.)

G Series Generator engine technical information

(*) Please indicate the voltage information of the machine and different engine options to our customer representative during the order.

Engine		AKSA
Engine Model		A4CRX25T
Cylinder and Design		4 cylinders - in line
Diameter and Stroke	mm	90 X 100
Total Cylinder Displacement	L	2,54
Air intake		Turbo Charged
Compression Ratio		18:1
Nominal Revolution	d/dk	1500
Oil Capacity	L	8,5
Standby Power (kW/HP)		35/47.59
Prime Power (kW/HP)		32/43.51
Number of Jacket Water Heater		1
Jacket Water Heater Power (Watts)		500
Fuel Type Used		Diesel
Injection and System Type		Direk
Fuel Pump Type		Direk
Governor System		Mechanic
Operating Voltage (Vdc)		12 Vdc
Battery and Capacity (Quantity/Ah)		1x54
Battery and Capacity (Quantity/Ah)		Water Cooled
Cooling Fan Air Flow (m³/min)		180
Coolant Capacity (Only with Engine / Radiator) (lt)		6/20
Air filter		Dry Type
Prime 100% Load Fuel Consumption (lt/hour)		8
Prime 100% Load Fuel Consumption (lt/hour)		8

G Series Alternator technical information

(*) Please indicate the voltage information of the machine to our customer representative when ordering.

Producer		AKSA
Alternator Brand and Model		AK 228
Frequency (HZ)	Hz	50
Strength (kVA)	kVA	35
Design		4 Pole, Brushless
Voltage	V	400
Phase		3
Automatic Voltage Regulator		FD460
Voltage Regulation	(+/-)	1%
Insulation System		H
Protection Class		IP23
Power Factor		0.8
Alternator Weight (Kg)		167.5
Cooling Air (m³/min)	m3	12.96

Voltage Codes
Ø	PHASE
Δ	DELTA
Y	WYE

(*) All measurements were taken while the device was operating at full load.

Frequently asked questions with the G Series Spray Foam Machinery

Can a machine without a generator work at work sites with mains power?
Yes, it can work, at the same time it has the ability to charge its battery during its operation.

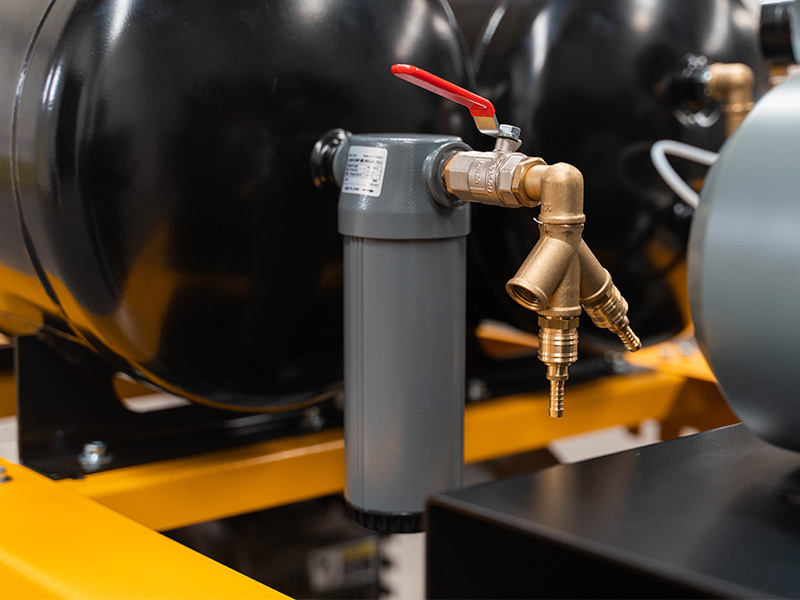

Does the machine have an air dryer?
The new generation air conditioner is included in the system.
Is the generator automatic starter?
A new generation ergonomic system that can operate with a single button.
Can the machine be sent by air cargo?
Due to its dimensions, it is not suitable for air cargo.
