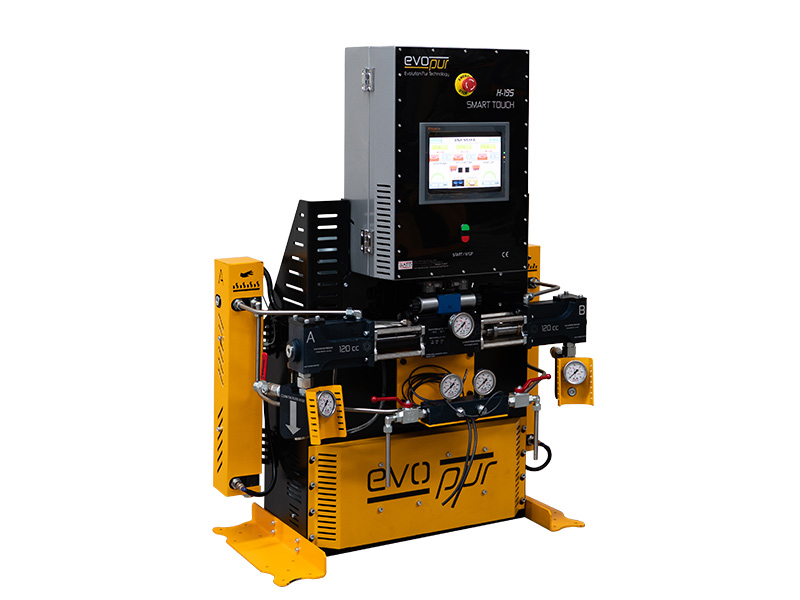

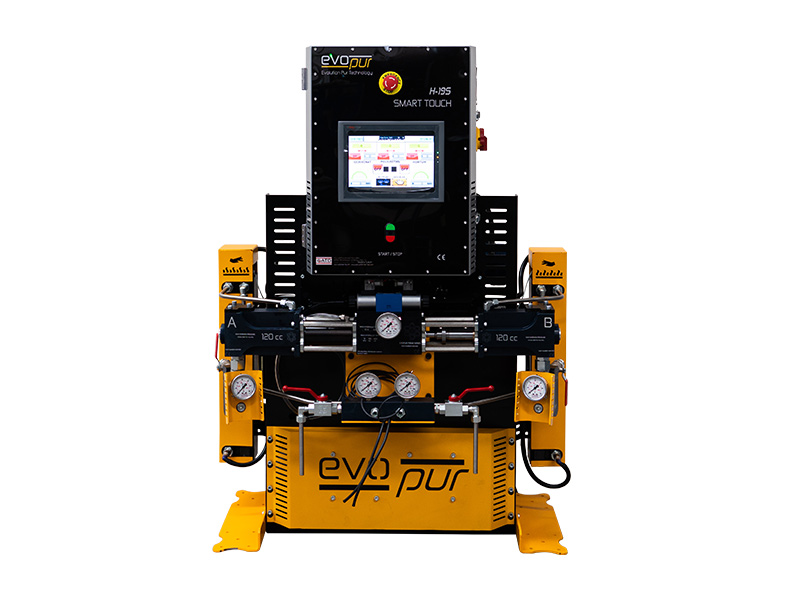

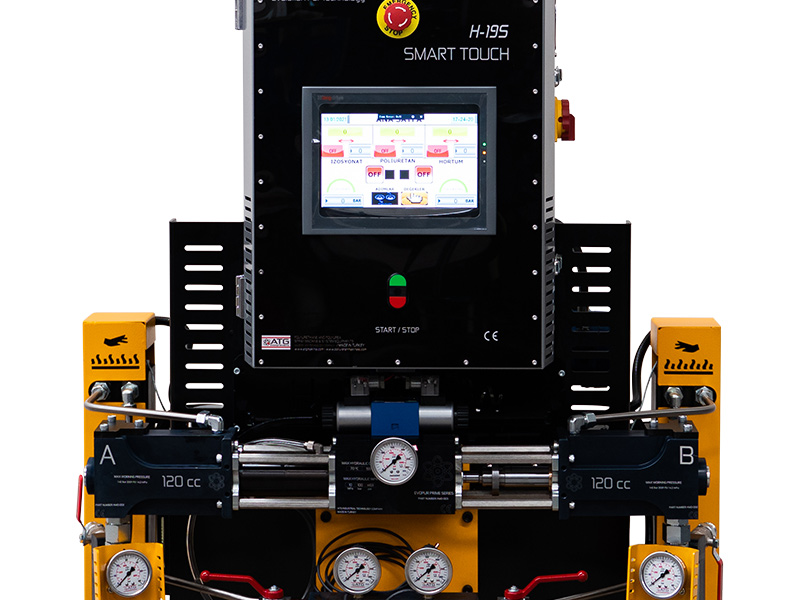

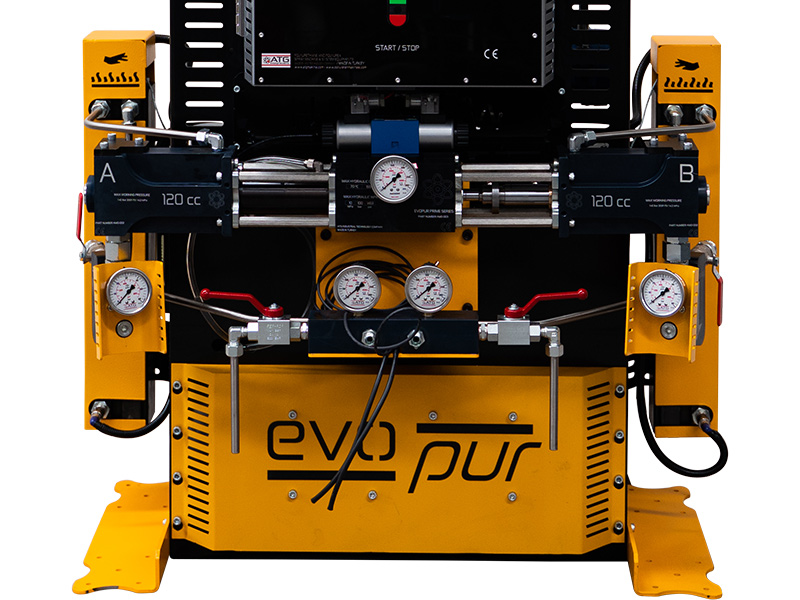

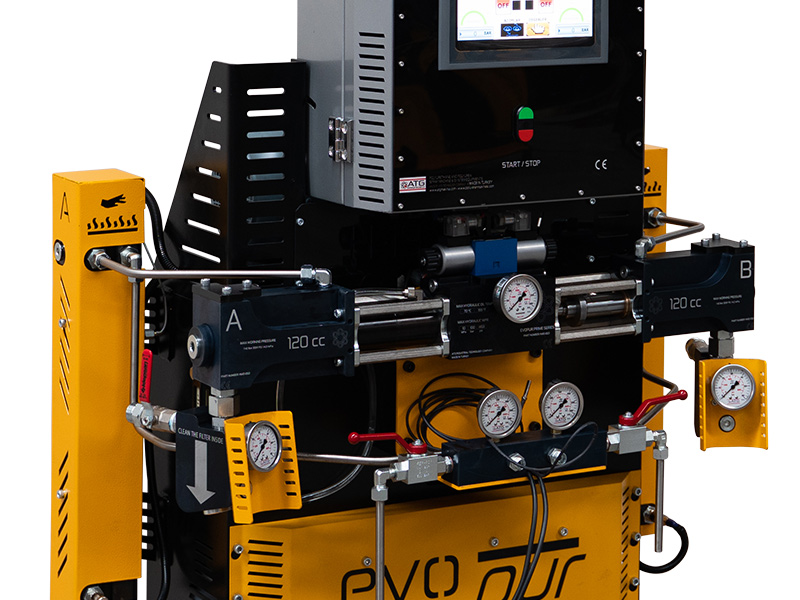

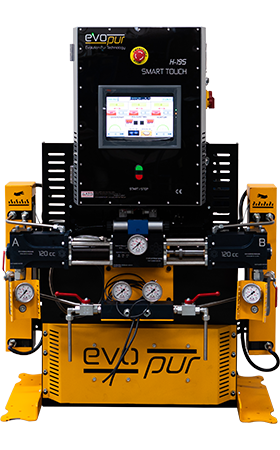

H-19S Smart Touch Polyurethane And Polyurea Spray Machine

Easy Maintenance

Service maintenance is easy

Good Performance

Has setpoints for better efficiency

Minimum Failure

It minimizes malfunctions with its advanced cardless automation system.

Poliüretan Makinası

Variable Flow

Has adjustable variable flow pressure


For those looking for an economical and robust solution


2 years warranty, 10 years spare parts availability

Get Price for H-19S Smart Touch
Polyurethane & Polyurea Spray Machine

Ask for a quote or ask your question now.
Find the right solution with Turkey's largest polyurethane machine manufacturer.
Click Request Price / Ask Question

Technical information

You can find the right polyurethane machine for you by examining the machine technical information. If you have any questions or find it difficult to find the right machine, contact us immediately and we will assist you.

Europe-Asia-Africa-Australia Australia America Continent
Maximum KW 16 (16.000 W) (20 kwa) 16 (16.000 W) (20 kwa)
Volt 350-415 220-240
Phase Number 3 ØY 3 ØΔ
Hertz 50 60
Generator KW 22 22
Ampere 31 31
Maximum Fluid Output (At 25 ° C ambient temperature) 20 kg/dk 20 kg/dk
Max. Fluid Working Pressure 1,5 MPa, 150 bar, 2175 Psi / 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi 1,5 MPa, 150 bar, 2175 Psi / 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi
Adjustable Fluid Pressure 30 bar - 150 bar 30 bar - 150 bar
Fluid Oil Pressure 72 bar 72 bar
Preheater 8 -16 kw 8 -16 kw
Hose Warmer 4 kw 4 kw
Fluid Output Nipples (ISO) 16-1.5 metric 1/2 Unf
Fluid Outlet Nipples (POLY) 18-1.5 metric 9/16 Unf
Liquid Entry Nipples (ISO) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Liquid Entry Nipples (POLY) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Max. Fluid Temperature 90°C 90°C
Max. Hose Length 120 MT 120 MT
Hydraulic Reservoir Capacity 34 litre 34 litre
Net Weight 300 kg (300.000 gr.) 300 kg (300.000 gr.)

Have a Question About This Machine?

Get in touch with one of the ATG Makina contact information, we will help you, answer all your questions and find the right machine.

Phone/GSM(0.533) 311 27 47

Fax(0.352) 322 10 19


H-19S Smart Touch Polyurethane and Polyurea Spray Machine Catalog

Would you like to examine the catalog of our machine? Download Now
